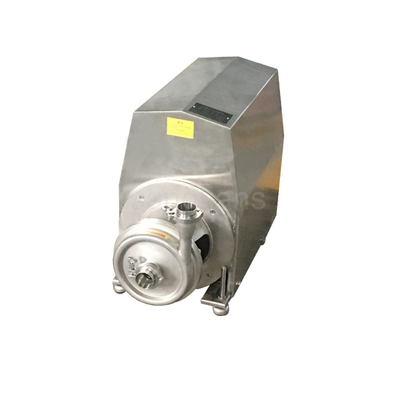

Sanitary Drinking Water Treatment 5.5KW 7KW Juice Brewery Use Stainless Steel Centrifugal Pump

1 Set
MOQ
Sanitary Drinking Water Treatment 5.5KW 7KW Juice Brewery Use Stainless Steel Centrifugal Pump
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 year
Customized support: OEM
Model Number: ST-L
Application: Drinking water treatment, Food and Beverage Industry, Pharmaceutical industry, Water Treatment Solutions
Horsepower: 0.75kw-55kw
Power Source: Electric
Pressure: normal pressure
Structure: Single-stage Pump
Outlet Size: optional
Voltage: optional
Power: 0.75kw-55kw, Electric
Standard or Nonstandard: Standard
material: 304 316L
voltage: 110V/ 220V/380V,50HZ/60HZ
motor: ABB motor/domestic motor
warranty: 18 months
working method: continuous
Package: plastic bag,Wood Carton
Usage: fluid
인증: CE,ISO9001
기본 정보
인증: CE,ISO9001
Model Number: ST-L
결제 및 배송 조건
제품 설명

Technical Parameter:
Spec:3T-180T,0.55kw-75kw
Material:SUS304,SUS316L,the pump body,pump cover and impeller contact with medium made of SS316L,SS304.
Standards:DIN,SMS
Impeller:
open type impeller,there is no dead end.Operation condition:Health centrifugal pump is a few horizontal transport of high and low lever,is not the self-priming type.
Surface Treatment:
the part contact with medium is polished and other parts glass painted and sand blaste
Max Inlet Pressure:0.5Mpa
Temperature Range:
-10℃ to +140 ℃(EPDM)

Flushed Shaft mechanical sealing
water pressre:Max 0.1Mpa water
Lift:0.25-0.5L/min
