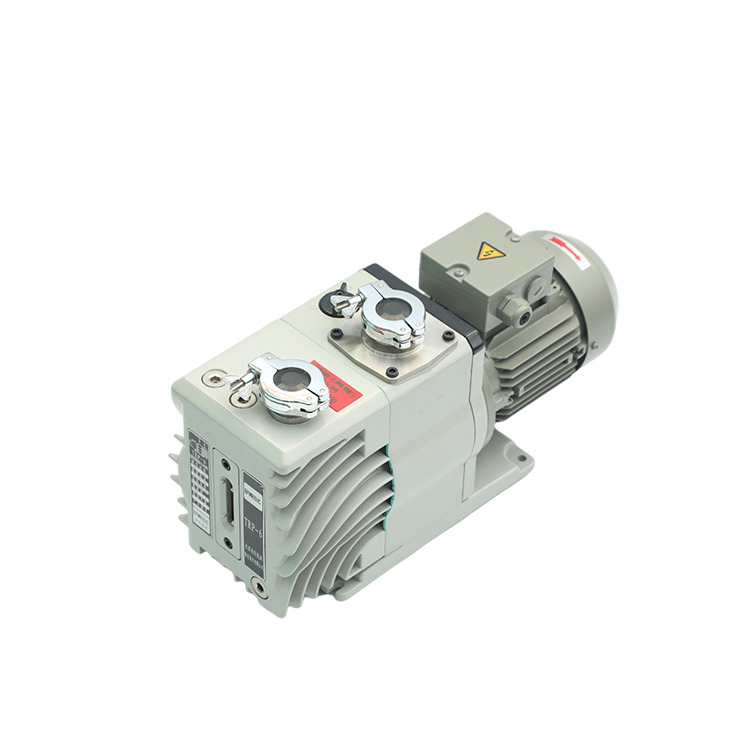

Industrial Oil Free Machine Dry Rotary Vane Vacuum Pump Commercial Buildings Printing

1 set
MOQ
Industrial Oil Free Machine Dry Rotary Vane Vacuum Pump Commercial Buildings Printing
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 years
Customized support: OEM
Model Number: TRP-6
Application: Commercial Buildings, District Energy, Drinking water treatment, Family Homes, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, W
Power Source: Electric
Pressure: High Pressure
Structure: Double-stage Pump
Voltage: 115V---400V
Power: 0.37/0.55 kW
Usage: Air Pump
Standard or Nonstandard: Standanrd
Frequency: 50Hz
Displacement speed: 1.5L/s
Motor power: 0.37/0.55Kw
Inlet /Outlet port: 25/25KF
Fuel: Oil
기본 정보
Model Number: TRP-6
결제 및 배송 조건
Packaging Details: Export carton or Plywood case
Supply Ability: 200 Set/Sets per Month
제품 설명
Two-stage rotary vane suction Liquid Ring Vacuum Pump Series Liquid Water Ring Vacuum Pump
Product Description
Product Paramenters
model
Unit
TRP-6
TRP-12
TRP-24
TRP-36
TRP-48
TRP-60
TRP-90
Displacement Speed
50Hz
L/s
1.5
3
6
9
14
18
25
50Hz
L/min
90
180
360
540
840
1080
1500
60Hz
L/s
1.8
3.6
7
10.8
16.7
21.7
30
60Hz
L/min
110
210
420
640
1000
1300
1800
Oil Filling/
L
0.9
1.1
1.9
2.1
3.9
4.9
5.5
Inlet Port
DN
25KF
25KF
25KF
25/40KF
40KF
Outlet Port
DN
25KF
40KF
Motor Power/kW
0.37/0.55
0.37/0.55
0.75/0.75
0.75/1.1
1.5/-
2.2/-
2.2(3)/-
Rotational speed of Pump/
50Hz

rpm
1450
60Hz
1750
Ultimate Pressure
Unit/pa
Without
gas ballast
Patial pressure




Pa
4×10-2
Total pressure
4×10-1
With gas ballast
Patial pressure
1.3
Total pressure
4
/Noise Level (Without gas ballast)
dB
50
50
52
52
56
56
56
Weight (3-Ph)
kg
23/27
25/29
～37
～39
～64
～83
～88
