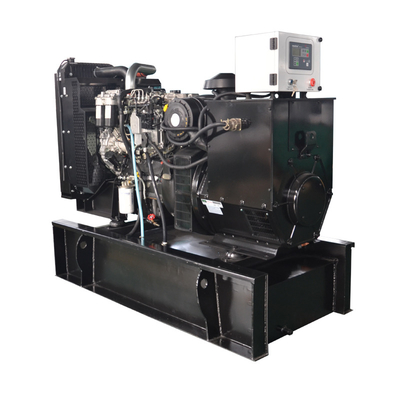

Diesel Generator Details | Item | Data | ||
1 | Model | QTP-160GF | ||
2 | Power | 160kW/200kVA | ||
3 | Current | 288A | ||
4 | Frequency | 50Hz or 60Hz can be customized | ||
5 | Votage | 400V/230V or can be customized | ||
6 | Rated rotation speed | 1500RPM | ||
7 | Optinal type | Open/Soundproof/Trailer | ||
8 | Size | 2550 x 930 x 1670mm | ||
9 | Weight | 1900kgs | ||
With Diesel Engine | ||||
1 | Brand & Model | 1106A-70TAG4 | ||
2 | Cylinder | 6 in line arrangement | ||
3 | Bore x Stroke | 105 x 135mm | ||
4 | Displacement | 7.01L | ||
5 | Lub oil capacity | 17L | ||
6 | Fuel consumption at 100% load | 220g/kW.h | ||
7 | Speed Governor | Electonic | ||
With Alternator | ||||
1 | Optional Brands | Stamford/Marathon/Hengsheng | ||
2 | Exciter type | Single bearing, Brushless, Self-excited | ||
3 | Power factor | 0.8 | ||
4 | Voltage adjust range | ≥5% | ||
5 | Insulation grade | H | ||
6 | Protection Grade | IP23 | ||
With Controller | ||||
1 | Optional brands | Deepsea/ComAP/Smartgen | ||
