제품 사양

Warranty: 1 year for complete set, 1 Year

Customized support: OEM

Model Number: XS

Application: Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Water Distribution, Water Treatment Solutions

Horsepower: 1768hp

Power Source: Electric, Diesel engine

Pressure: Low Pressure, Up to 2.5Mpa

Structure: Single-stage Pump

Cable Length: 10m

Outlet Size: 800

Voltage: 380/440V

Power: 1300kw

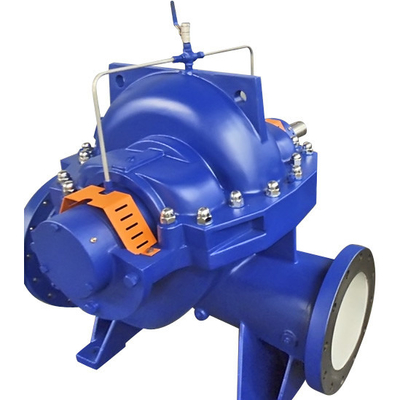

Product name: Split case pump

Feature: High Efficiency

usage: Water Circulation

Flow rate: Up to 11600m3/h

Speed: 1450rpm/2900rpm

Material: Cast Iron/SS304/SS316

Fuel: AC Electric Induction Motor

Motor: 380/440V

인증: ISO

기본 정보

인증: ISO

Model Number: XS

결제 및 배송 조건

Packaging Details: Export Wooden Case

Supply Ability: 800 Set/Sets per Month

제품 설명

Products Description

Product introduction

Tpye XS pumps are new type of single stage double suction centrifugal split pumps with high pefformance.They are widely used invdelivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.Type XS pumps are advanced products developed from type SH. S . SA . SLA. SAP pumps

Advange

Technical Advantage

1.Type XS pumps work stably with less noise and vibration and can work at a lifting speed due to.Short support at both sides, thus they can be widely used.

2.The pipelines arrangement of type XS pump looks simple and beautiful due to inlet and outlet at a same center line.

3.The same rotor of type XS pumps can be operated at reverse direction to avoid damage to the pumps by water hammer. 4.Unique design of type XS pumps working at high temperature using middle support to fasten the pump casing and using cooling seals oil lubrication bearing then pump suitable for working at 200℃ especially for suppling heated water to pipe net system.

5.Type XS pump casting parts can be vertically or horizontally mounted acoording to different working condition, with mechanical seals or packing seals.

6.Type XS pumps look beautiful with visible lines adopting industrially designing.

Cost Advantage:

1.The efficiency of XS pumps are 2%~3% higher than the same type pumps due to adopting advanced hydraulic model and thus minimum the operating costs.

2.The NPSH of type XS pumps are 1-3 meters lower than the same type split pumps due to using advanced hydraulic model and advanced manufacturing technique and thus minimize the foundation costs and extendling the using life.

3.Type XS pumps are suitable for any site working condition due to using SKF NSK bearing and other parts chosen by the customers and thus minimize the maintenance costs.

Maintaince Advantage:

1.It is very easy and simple to replace the mechanical seal due to usine container type machaniacl seal.

2.It is rapid easy to assembly and dismout the rotor parts due to using elastic ripess assembling.

3.It is unnecessary to make adjustment when assembling.

Technical Data

Flow rate	11600m3/h
Head	Up to 250m
Speed	970/1450/2900rpm
Temperature	Up to 105 ℃
Casing pressure	Up to 2.5Mpa
Shaft seal	Mechanical seal/Gland packing seal
Material	Cast iron/Ductile iron/Stainless steel/Bronze

Structure drawing

Spectrum

Product Show

Customer Onsite Installation Photos

Company Profile

Certifications

Exhibition

Transportation

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral export wooden case . If you have legally registered patent, we can pack the goods in
wooden case with your own marks after getting your authorization letters.
Q2. What is your termsof payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay
the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take from 10 dasys to 50 days after receiving your advance payment according to the pump's material. The
specific delivery
time also depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do youtest all your goods before delivery?
A: Yes, we have 100% test the pumps before delivery
Q8: How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they are from.
