Mining Industry Vertical Tobee 250TV-SP Sump Slurry Pump

1 Set
MOQ
$32,000.00(>=1 Sets)
가격
Mining Industry Vertical Tobee 250TV-SP Sump Slurry Pump
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 3 years
Customized support: OEM, ODM, OBM, Software reengineering
Model Number: 250TV-SP
Application: Mining industry, Iron Ore Dressing Plant, Copper Concentration Plant, Molybdenum Concentration Plant, Potash Fertilizer Plant, Other Mineral Processing Plants, Alumina Industry, Coal Washery, Power Plant, Sand Excavation, Building Material Industry, Chemic
Horsepower: Max.200 kw
Power Source: Electric
Pressure: Low Pressure, Low Pressure
Structure: Single-stage Pump
Outlet Size: 250 mm
Voltage: 220v/380v/440v
motor: Electric
Contact info: Sales8(at)tobeepump.com
Pump Model: 250TV-SP
Color: Blue
Impeller dia.: 575 mm
Motor: Electric
Material: Metal
Speed: 400-750 r/min
Brand: Tobee
Website: www.tobeepump.com
기본 정보
Model Number: 250TV-SP, 250TV-SP
결제 및 배송 조건
Packaging Details: Wooden Case
Supply Ability: 120 Set/Sets per Month
제품 설명
PRODUCT DESCRIPTION

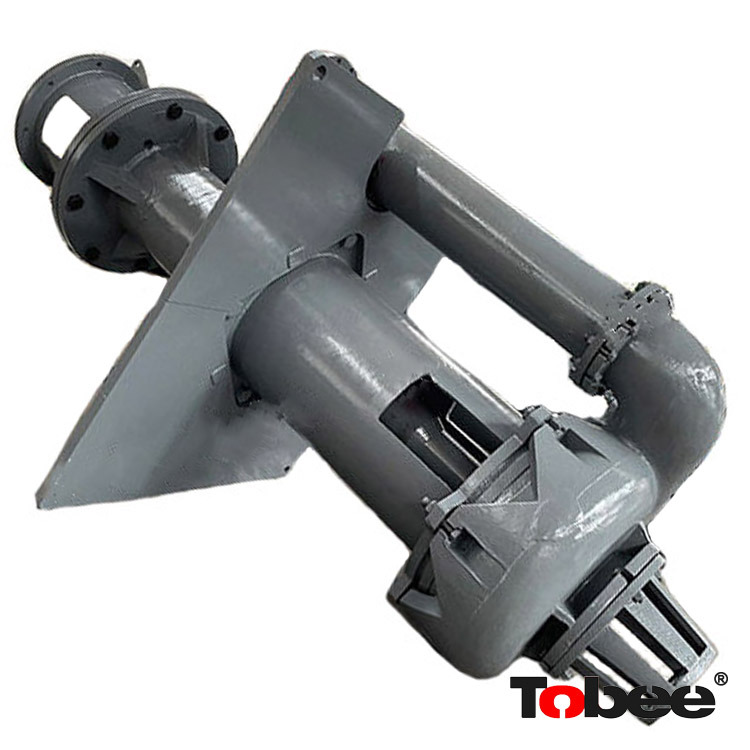

250TV-SP Vertical Sump Slurry Pump

Tobee® 250TV-SP vertical slurry pumps can operate well in a variety of sump conditions, and can also be readily applied on submerged suction pumping applications. The 250TV-SP vertical pump with submerged depth 2600mm, and the length of the shaft can be customized to the depth of the liquid level.



PRODUCT SPECIFICATIONS
Model
250TV-SP
Capacity
261-1089 m3/h
Head
7-33.5 m
Speed
400-750 r/min
Eff.η
60%
Impeller dia.
575 mm
Matching power
18.5-200 kw
Max.particles
65 mm
PUMP FEATURES
1. Vertical sump pumps are vertical, centrifugal slurry pumps submerged in sump to work.
2. They are designed for delivering abrasive, large particle and high density slurries.
3. These pumps have no need of any shaft seal and sealing water.
4. They can also be operated normally for insufficient suction duties.
5. Wet parts of Tobee type SP metal vertical slurry pump are made of abrasion-resistant metal.
6. All parts of Tobee type SP(R) rubber lined vertical slurry pump immersed in liquid are lined with rubber outer liner.
7. To transport non-edge angle abrasive slurry.
SIMILAR PRODUCTS
APPLICATIONS

Mining & Mineral Processing

The slow running speeds of the Tobee heavy duty rubber lined slurry pump, together with the comprehensive choice of abrasion resistant alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.

Dredging Sand Project

Designed for easy and simple strip down and re-assembly, the Tobee heavy duty rubber lined slurry pump minimises downtime, making it the ideal choice where installed stand by pumps are not available.

Sand Mining Project

Wherever abrasive solids are causing premature failure of pumps, the Tobee heavy duty rubber lined slurry pump range has the right combination of performance, wear life and reliability to bring the customer the lowest cost of ownership.
