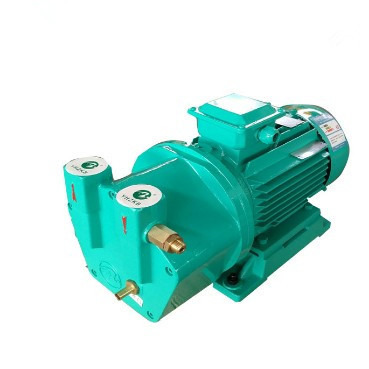

SK series liquid ring vacuum pump and compressor use water as sealant,so it can suction air,steam,gas that contains much water,and powder gas without granule.
It's maily used in low/rough vacuum degree and big capacity area,such as vacuum drying,vacuum concentration,vacuum evaporation,vacuum degassing,vacuum distillation.So it's suitable for medical/pharmaceutical industry,chemical industry,textile industry,food-related industry.
Note:supplying water te,perature is better around 5-20℃ and suction gas temperature should lower than 40℃.
Pump specifications:
| Model |
Power (KW) |
Capacity (m³/min) |
Ultimate vacuum(-Mpa) | Intake and exhaust diameter(inch) |
Weight (KG) |
Size (L*W*H) |
Supplying water (L/MIN) |
Noise:dB(A) |
| SK-0.15 | 0.55 | 0.15 | 0.096 | G1/2" | 12 | 317*176*206 | 6 |
<72
|
| SK-0.2 | 0.75 | 0.2 | 0.096 | G1" | 36 | 400*200*268 | 6 | <72 |
| SK-0.3 | 1.1 | 0.3 | 0.096 | G1" | 39 | 420*200*260 | 15 | <75 |
| SK-0.5 | 1.5 | 0.5 | 0.096 | G1" | 41 | 428*200*275 | 19 | <75 |
| SK-1.2 | 3 | 1.2 | 0.096 | G1" | 63 | 497*232*311 | 20 | <75 |
| SK-1.5 | 4 | 1.5 | 0.096 | Φ40(mm) | 75 | 571*254*325 | 22 | <75 |
| SK-2 | 4 | 2 | 0.096 | G1/2" | 82 | 560*250*336 | 23 | <82 |
This series of vacuum pumps are widely used in medical/pharmaceutical industry,chemical industry,textile industry,power plant,food-related industry,metallurgical industry and paper making industry.
Comparing to similar products,our model owns a lot of superiority:
1.more than 30 years' experience in quality control and lead time,also we can provide competitve price.
2.impeller is produced by our company,it’s material is alloy cooper to ensure firmness and reliability.
3.inside pump cover,it has anti-fouling coat disposal.
4.use fluororubber mechanical seal to prevent corrosion so it can run smoothly under strict weather.
5.all motor has CE mark and is made by our company to ensure power and so it can perfectly match our model.
6.whole testing system controlled by micro-machine.
7.for quality problem,we guarantee to repair or replace within one year.
Packaging:
Standard export polywooden cases.
Customized packaging can be available.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need customs clearance or pick-up. |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port. |
Established in 1986, our company has been focusing on the development and manufacture of vacuum pumps and water pumps. We are a comprehensive pump company integrating production, sales and after-sales maintenance services.
Our main products include liquid ring vacuum pumps;rotary vane vacuum pumps;roots vacuum pump;centrifugal water pump and customized vacuum pump system,which are widely used in all kinds of plastic extrusion line;medical and pharmaceutical industry(autoclave sterilizer/capsule filling and sealing machine);food-related industry(beverage machine/milking machine/sugar plant);chemical industry;power plant;coal mine etc.
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer of vacuum pumps and water pumps in China since 1986.
2. Q: What's your MOQ?
A: One set is ok.
3. Q: What's your payments terms?
A: T/T, Western Union......
4. Q: What certificates do you have?
A: CE, ISO 9001 ....
5. Q: How about the warranty?
A: 12 months warranty since delivery.
6. Q: What's the delivery time?
A: For different models,different motor specs and different material,delivery time is different,please double confirm with our sales team.
7. Q: Can you do OEM brand?
A: Yes, welcome.
8. Q: Quality reliable?
A: We have whole testing system controlled by micro-machine,testing performance curve can be sent to clients before arrange delivery.
