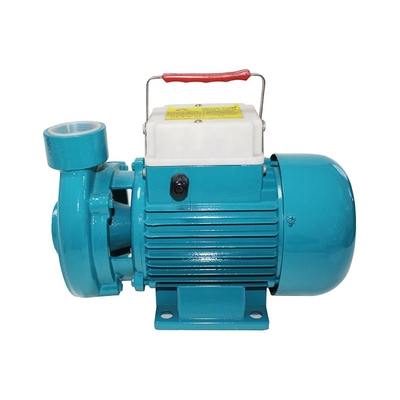

1.5DK-20 Electric Centrifugal Clean Water Pump
Application
For water supply from wells or reservoirs.
For domestic use. for civil and industrial applications.
For garden use and irrigation
Operating conditions
Maximum ambient temperature up to +40º C
Maximum sand content: 0.25%
Motor and pump
Rewindable motor
Three-phase: 380V-415V/50HZ
Single-phase: 220V-240/50HZ
Structural characteristics
Pump body: Cast iron
Front cover: Cast iron
Impeller: Brass
Mechanical seal: Ceramic and graphite
Shaft: Carbon steel/stainless steel
Motor case: Aluminum
Warranty: 1 year
(according to our general sales conditions)
CPM130 CLEAN WATER PUMP | |
max.head | 14M |
max.flow | 75L/Min |
power | 0.37kw/0.5hp |
We have QC department to control our products quality. Our testing item include max head testing, max flow testing and power detection etc.
